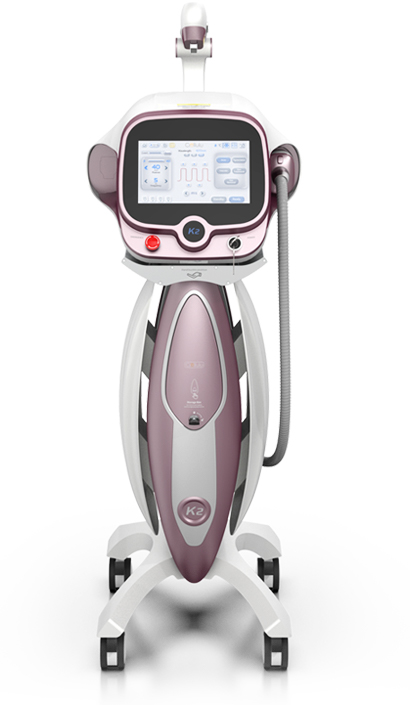

CIELLULU MULA K2 Broad Band Light DPL beauty machine for skin care and hair removal

11 Filters IPL DPL Beauty Mchine For Skin Rejuvenation And Hair Remove
Brand
CIELLULU
Made
China
Minimum order quantity
A (machine)
Model
Mula K2-A1
Dimension/G.W
Machine: 810*540*675mm 28KG, Trolley: 645*515*1000mm 20KG(Optional)
INQUIRY

MUse & LuminAry

IPL MULA K2

ALWAYS BE THE GUARDIAN OF YOUR SKIN

MULA symbolizes a beacon of hope and creative brilliance in a worla seeking visionary thought and inspired guidance.

Legend of the performance with One Handpiece, Eleven Filters and Two Precise Treatment Heads.

Broad Band Light &DPL MULA K2

11 Filters multi functional skin care rejuvenation aesthetics medical Broad Band Light & DPL Photofacial

Always be the guardian of your skin

Technology: Broad Band Light & Dynamic Pulsed Light Facial(DPL) Photofacial
Filters Number: 11
Precise TreatmentHeads: 2
Treatment Category: Acne, Pigmentation, Vascular Lesions, Skin Rejuvenation, Wrinkles & Fine Lines, HairRemoval

Legend of the performance with One Handpiece, Eleven Filters and Two Precise Treatment Heads.

1

Introduction

+
k2 skin rejuvenation device

Pulse number, pulse width and pulse interval time all can be adjusted

+
K2 header Ciellulu beauty machine

Large area spot size 38x14mm, high efficiency and fast

+

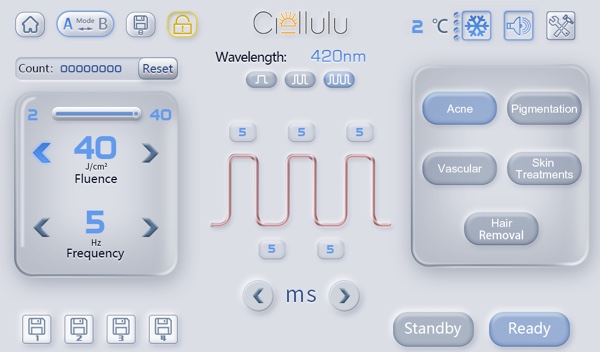

Easy to learn and use with
the treatment presets

+

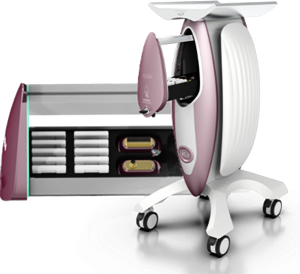

K2 drawers Ciellulu skin laser machine

Large storage compartments, convenient to storage all the filters

IPL MULA K2 Ciellulu

11 Filters

For more Customized & Comprehensive treatment

Mula K2 420nm
Mula K2 515nm
Mula K2 560nm
Mula K2 590nm
Mula K2 615nm
Mula K2 695nm
Mula K2 640nm
Mula K2 500nm
Mula K2 550nm
Mula K2 ACNE
MULA K2 A1 VASCULAR

MULA K2 with its 11 wavelength filters offers a versatile solution for various skin concerns, Each wavelength filter is designed to target specific issues, making MULA K2 a comprehensive tool for skin rejuvenation.

IPL Handpiece

For more Comfortable treatment

The IPL Handpiece boasts an ergonomic design, ensuring comfortable handling and ease of use during treatments. Its user-friendly shape reduces hand fatigue, allowing for precise, steady application, thereby enhancing the comfort and effectiveness of each therapy session.

IPL Handpiece ipl machine professional

2 Precise Treatment Heads

For more Precise treatment

2 Precise Treatment Heads ipl machine professional

⦁ ∅8 for targeted, delicate areas, ensuring accuracy in small zones.
⦁ 38x10 Fractional Head for broader areas, enabling efficient, uniform coverage.

These versatile heads cater to various skin concerns, ensuring effective, customized treatments.

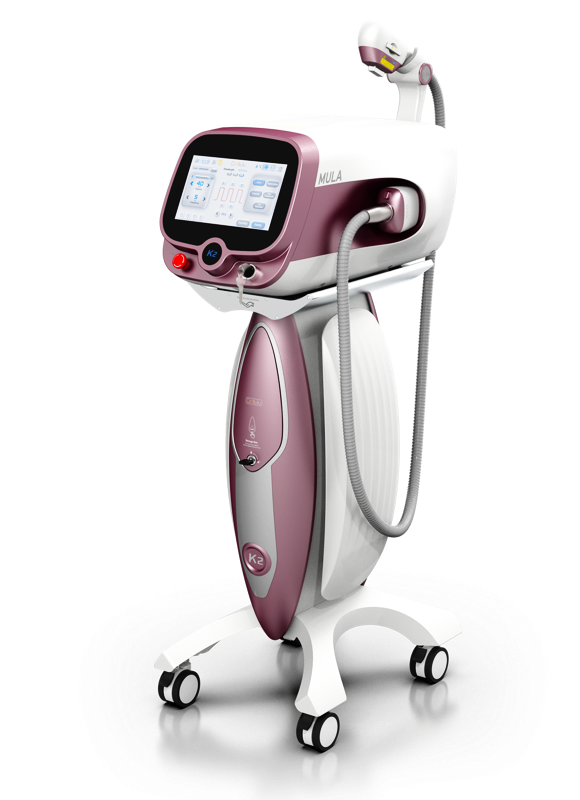

Smart Trolley

For more Convenient treatment

The Smart Trolley for MULA K2 offers organized storage for treatment accessories like filters and precise heads, and enhances its mobility and stability, adding aesthetic appeal to professional settings and facilitating efficient, comfortable treatments.

professional laser hair removal machines

2

Leading technology

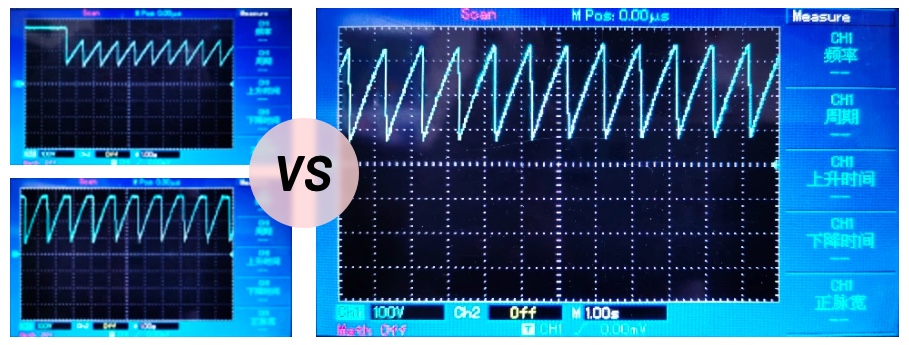

Intelligent Energy Management System

The charging and discharging time is intelligently and accurately adjusted according to the energy profile, and the regular profile enables rapid charging; at the same time, the energy is stable and does not decay, making treatment fast and efficient.

Intelligent Energy Management System

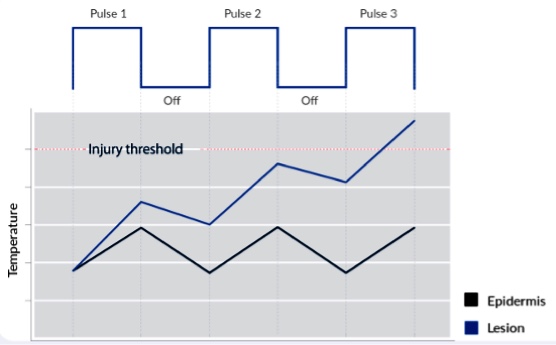

IPL (lntense Pulsed Light) uses intense, non-coherent light pulses (400nm - 95 0nm) to target skin chromophores, acne facial treatment, vascular lesions, skin care rejuvenation, and hair removal. DPL (Dynamic Pulsed Light), an advancement of IPL, combines laser and light technology for a more targeted approach. The key difference is IPl's single light source for surface targeting, while DPL uses multiple pulsed lights at varying wavelengths for deeper skin layers, offering safer, faster and more comfortable treatments.

k2 waveform diagram

3

Applicators

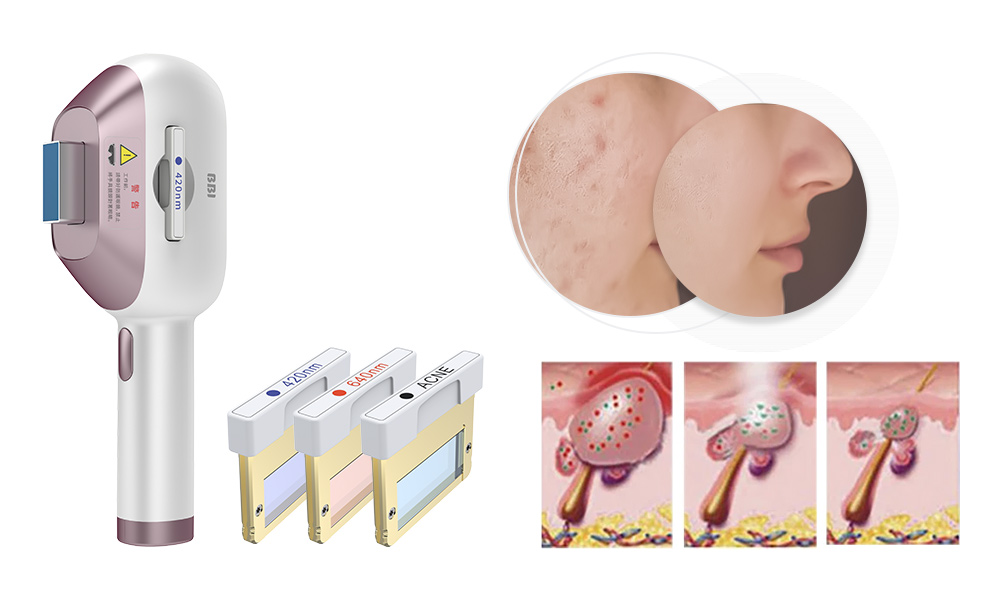

Mula K2 420nm
420nm
Acne facial treatment, anti inflammatory for skin
Mula K2 500nm
500nm
Vascular diseases such as facial telangiectasia treatment, erythema after acne, facial flushing and nevus flammeus

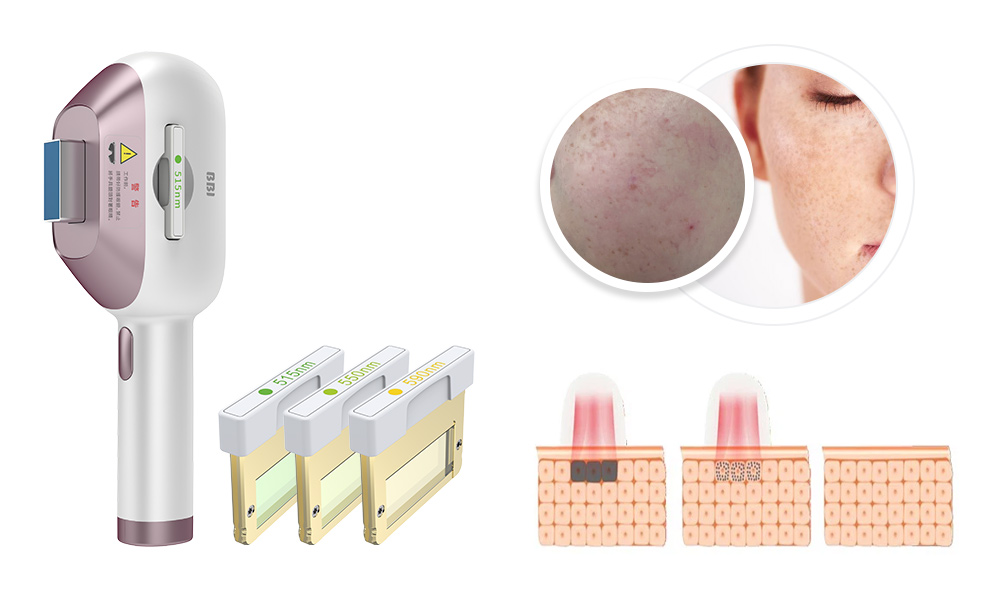

Mula K2 515nm
515nm
Ipl laser for rosacea, epidermal pigmentation
Mula K2 550nm
550nm
Freckle removal treatment, Aestates, senile spots and the other pigmentation
Mula K2 560nm
560nm
Epidermal vessel, epidermal pigmentation
Mula K2 590nm
590nm
Whitening skin treatment, Antiphlogosis, Anti-Redness, dermal pigmentation, Anti-Dullness
Mula K2 615nm
615nm
Skin care rejuvenation, improve skin quality, smooth fine lines
Mula K2 640nm
640nm
Photo rejuvenation therapy, anti wrinkles treatment, shrinking pores
Mula K2 695nm
695nm
Ipl hair removal
Mula K2 ACNE
ACNE
Severe acne treatment, Sebaceous Gland
MULA K2 A1 VASCULAR
VASCULAR
Severe deep and superficial vascular lesions

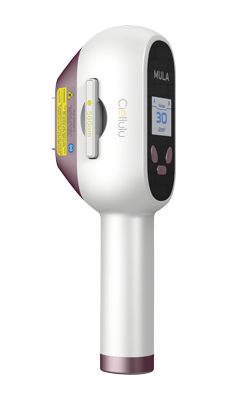

Adjustable window design in handpiece skin laser machine
IPL Handpiece
Adjustable window design in ergonomic handpiece
professional laser hair removal machines

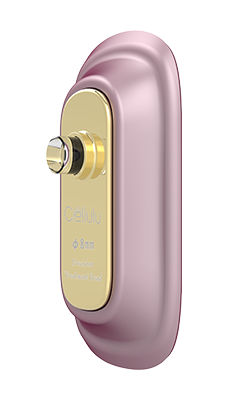

φ8
φ8 for targeted,delicate areas, ensuring accuracy in small zones.
best professional laser hair removal machine

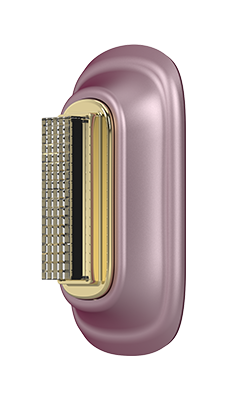

38x10mm Fractional
38×10mm Fractional for dark, sensitive skin and thin cuticle skin.
Mula K2 420nm

420nm

Acne facial treatment, anti inflammatory for skin

Mula K2 500nm

500nm

Vascular diseases such as facial telangiectasia treatment, erythema after acne, facial flushing and nevus flammeus

Mula K2 515nm

515nm

Ipl laser for rosacea, epidermal pigmentation

Mula K2 550nm

550nm

Freckle removal treatment, Aestates, senile spots and the other pigmentation

Mula K2 560nm

560nm

Epidermal vessel, epidermal pigmentation

Mula K2 590nm

590nm

Whitening skin treatment, Antiphlogosis, Anti-Redness, dermal pigmentation, Anti-Dullness

Mula K2 615nm

615nm

Skin care rejuvenation, improve skin quality, smooth fine lines

Mula K2 640nm

640nm

Photo rejuvenation therapy, anti wrinkles treatment, shrinking pores

Mula K2 695nm

695nm

Ipl hair removal

Mula K2 ACNE

ACNE

Severe acne treatment, Sebaceous Gland

MULA K2 A1 VASCULAR

VASCULAR

Severe deep and superficial vascular lesions

2

Treatment principle

What is IPL?

Intense Pulsed Light (IPL) is a technology used in various skin treatments, including hair removal, photorejuvenation, and treating vascular and dermatologic diseases. IPL emits a broad spectrum of light that targets specific structures and chromophores in the skin, mainly melanin in hair or hemoglobin in blood vessels, causing thermal and/or mechanical damage to them without damaging the surrounding tissue.

The Layers of Skin

What is IPL?

Intense Pulsed Light (IPL) is a technology used in various skin treatments, including hair removal, photorejuvenation, and treating vascular and dermatologic diseases. IPL emits a broad spectrum of light that targets specific structures and chromophores in the skin, mainly melanin in hair or hemoglobin in blood vessels, causing thermal and/or mechanical damage to them without damaging the surrounding tissue.

Standard Filters LPI Treatment
420nm (420-950nm)  Inflammation, Acne
515nm (515-950nm) Superficial Pigment, Acne Rosacea
560nm (560-950nm)  Superficial Vessels, Superficial Pigment
590nm (590-950nm) Pigmentation, Anti-dullness, Whitening, Anti-phlogosis, Anti-Redness
615nm (615-950nm)  Skin Rejuvenation, Fade Fine Lines, Improve Skin Quality
640nm (640-950nm) Wrinkles, Shrinking Pores, Oil-controled, Anti-inflammatory, Acne Tuberata
695nm (695-950nm) Skin Fine Lines, Shrinking Pores, Hair Removal
Optional Filters DPI Treatment
500nm (500-600nm) Vascular Diseases such as telangiectasia, erythema after acne, facial flushing, nevus flammeus
550nm (550-650nm) Freckles, Sunburn spots, senile spots and other pigmented diseases
ACNE (400-600 & 800-1200nm)  Sebaceous Gland, Severe Acne
VASCULAR (530-650 & 900-1200nm)  Severe Deep and Superficial Vascular Lesions
Acne Removal Treatment

Acne Removal Treatment

Endogenous porphyrins in Acne absorb the energy of pulsed light to produce photochemical reactions that release singlet oxygen to effectively kill propionibacterium in acne.



Propionibacterium Acnes (PAC) produces endogenous porphyrins during its normal metabolism.

◉ The energy of specific bands is absorbed by porphyrin through the skin, and porphyrin is stimulated to release singlet oxygen ion

◉ Singlet oxygen ion can effectively kill propionibacterium acnes

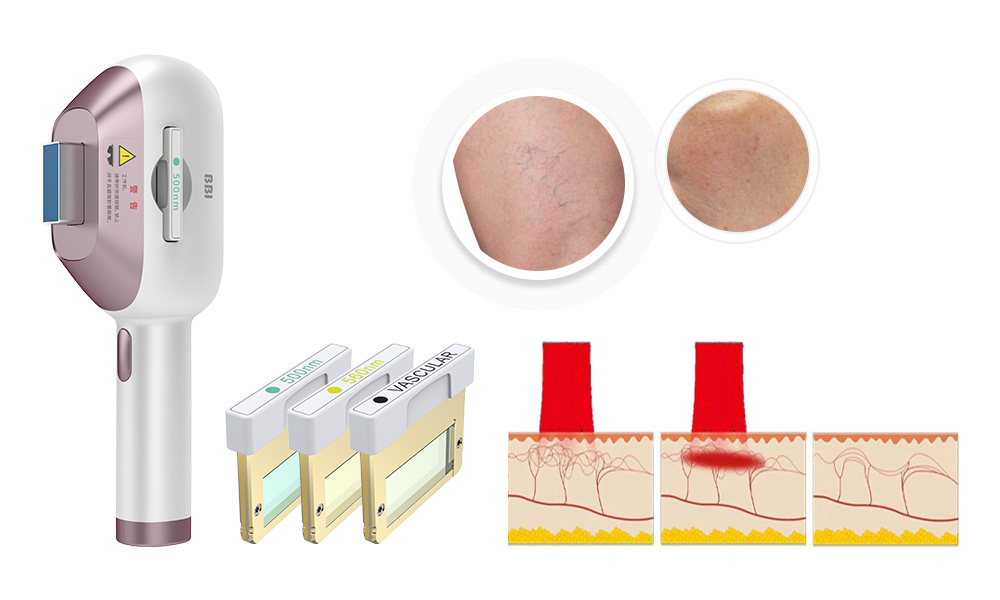

Superficial Blood Vessel Removal Treatment


The hemoglobin absorbs the energy of pulsed light selectively will lead to blood warming, thrombosis and close dilated blood vessels. The blood can not pass through the diseased blood vessels, so that it lacks nutrition and becomes atrophy, thus,eventually metabolized by the human body, so as to achieve the purpose of treating telangiectasia. But the normal blood vessels have less hemoglobin to absorb less energy so they are not affected.

Superficial Blood Vessel Removal Treatment
Freckle Removal Treatment

Freckle Removal Treatment

It adopts the“Selectively Thermal Absorption of Laser” principle. When the specific wavelength of light acting on the skin will be absorbed selectively by the melanin of diseased tissue (the content of melanin in diseased tissue is much more than that of normal tissue.). Some of melanin in the deep layer will be cracked for fine particles, and the particles will be swallowed by the phagocyte and expelled from body with lymphatic system. Some of melanin in the superficial tissue will be popped out of epidermis,and then, the color of epidermis pigment will be deeper. The melanin will drop with the skin cuticle metabolism. Thus, the freckle will be faded away. However, the normal skin absorbs less energy, and there is the strong epidermis cooling technology to protect it.Therefore, the normal skin won’ t be hurt, at the same time, the skin complexion will be improved.

Wrinkles Removal and Skin Rejuvenation Treatment

With ultra narrow spectrum, it produces thermal effect and photochemical effect.Thermal effect makes some aging and naive collagen in dermis caused thermal coagulation, thus the activity of the fibroblasts promote a large number of new hypodermic collagen regenerated. Photochemical effect makes deep collagenous fiber and elastic fiber rearranged and restored skin elasticity, besides, strength-ens the function of vascular tissue, enhances skin metabolism to make skin moist delicate and elastic.

Wrinkles Removal and Skin Rejuvenation Treatment

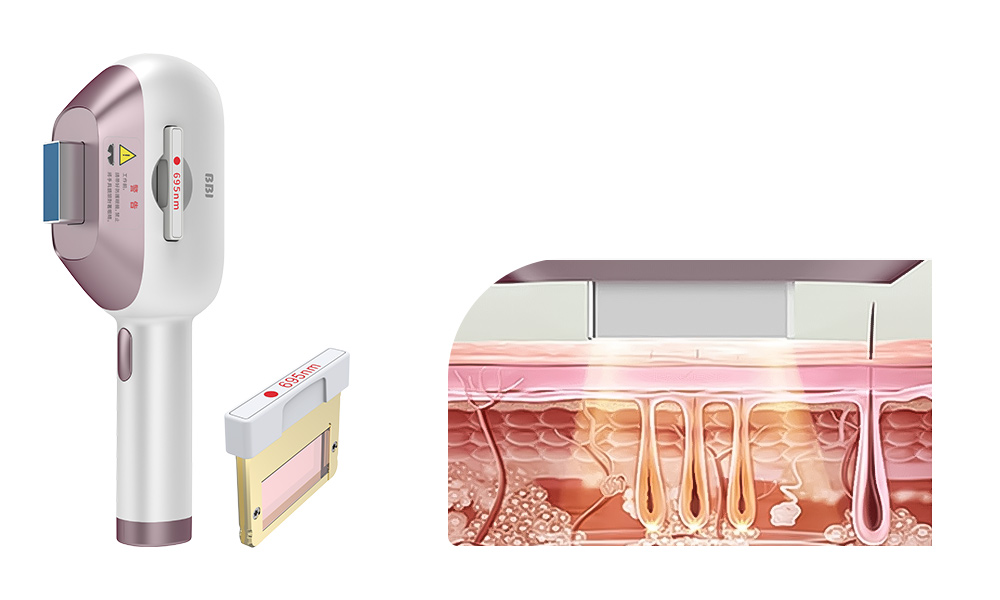

Hair Removal Treatment

Hair Removal Treatment

After the melanin in the hair stem absorbs the light energy selectively, the light energy will be converted into thermal energy, which is transmitted to the isthmus and follicle (dermal papilla, hair growth point) of hair follicle through the hair stem to damage the blood vessels in the dermal papilla and cause them heat and atrophy. So as to achieve the effect of hair removal.

4

Before & After

Broad Band Light & DPL beauty machine: Professional-level beauty care

Mula K2's precision treatment head design enables it to provide professional-level beauty care, and users can adjust the energy output range according to their individual needs to achieve personalized care results.

Before
After

Photo rejuvenation therapy

Before
After

Acne facial treatment

Before
After

Vascular diseases

Before
After

Freckle removal treatment

Before
After

Ipl hair removal

Before
After

Photo rejuvenation therapy

Before
After

Acne facial treatment

Before
After

Vascular diseases

Before
After

Freckle removal treatment

Before
After

Ipl hair removal

6

Product parameters

Transaction parameters

Brand

CIELLULU

Made China
Minimum order quantity A (machine)
Model Mula K2-A1
Dimension/G.W Machine: 810*540*675mm,28KG
Trolley: 645*515*1000mm, 20KG (Optional)

Property parameters



Filters 420nm(420-950nm), 515nm(515-950nm), 560nm(560-950nm), 590nm(590-950nm), 615nm(615-950nm), 640nm(640-950nm), 695nm(695-950nm), 500nm(500-600nm), 550nm(550-650nm),
ACNE (400–600 & 800–1200 nm), VASCULAR (530–650 & 900–1200 nm)
Spot Size 14*38mm Pulse Interval 1-99ms
Handpiece IPL and DPL Handpiece Screen 10.1 Inch Industrial Capacitive Touch Screen
Fluence 2-50J/cm2 Voltage AC220V 50Hz
Frequency 1-30Hz Power <2300W
Pulse Width 1-30ms Cooling System TEC Electronics Cooling Water Cooling, and Air Cooling
Pulse Number 1---3 Temperature 15-30C
