CIELLULU Q-Switched ND:YAG Laser LIFFAN K6

11 Filters IPL DPL Beauty Mchine For Skin Rejuvenation And Hair Remove

Brand

CIELLULU

Made

China

Minimum order quantity

A (machine)

Model

Mula K2-A1

Dimension/G.W

Machine: 810*540*675mm 28KG, Trolley: 645*515*1000mm 20KG(Optional)

INQUIRY

MUse & LuminAry

IPL MULA K2

ALWAYS BE THE GUARDIAN OF YOUR SKIN

MULA symbolizes a beacon of hope and creative brilliance in a worla seeking visionary thought and inspired guidance.

Legend of the performance with One Handpiece, Eleven Filters and Two Precise Treatment Heads.

● INQUIRY NOW

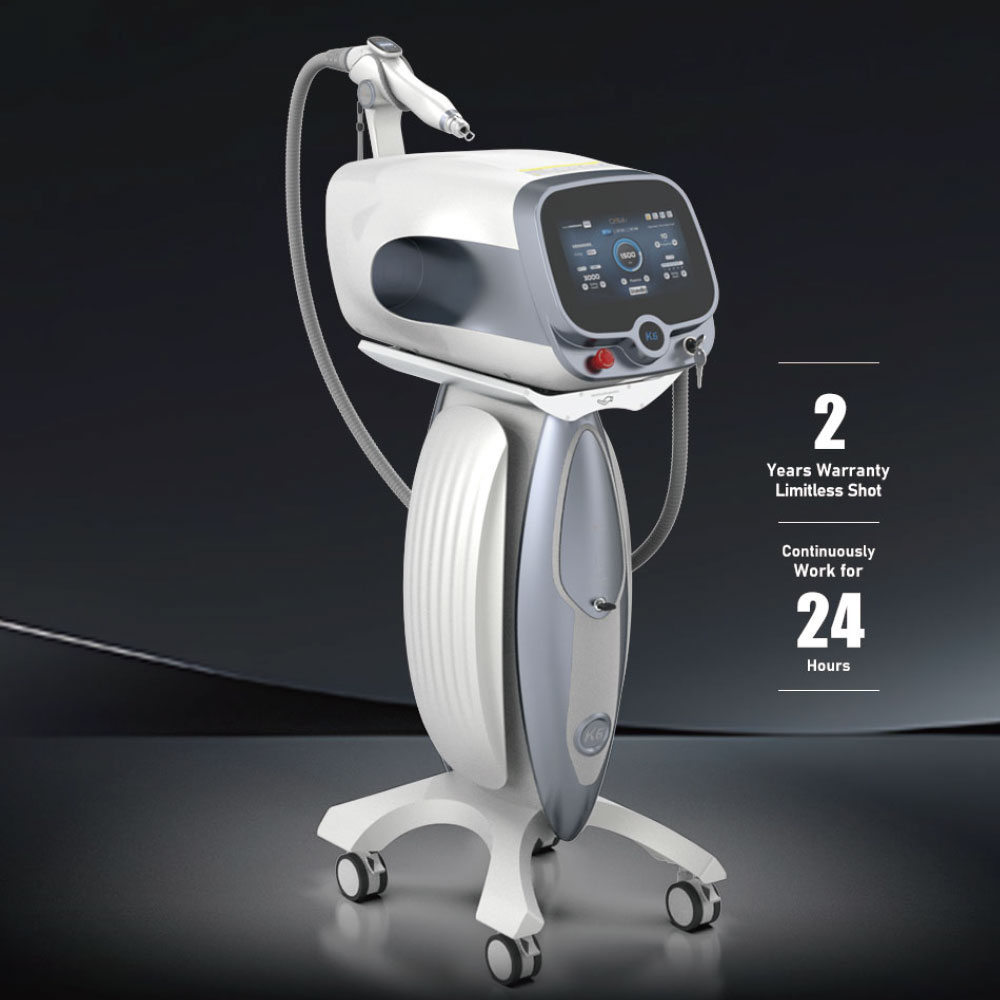

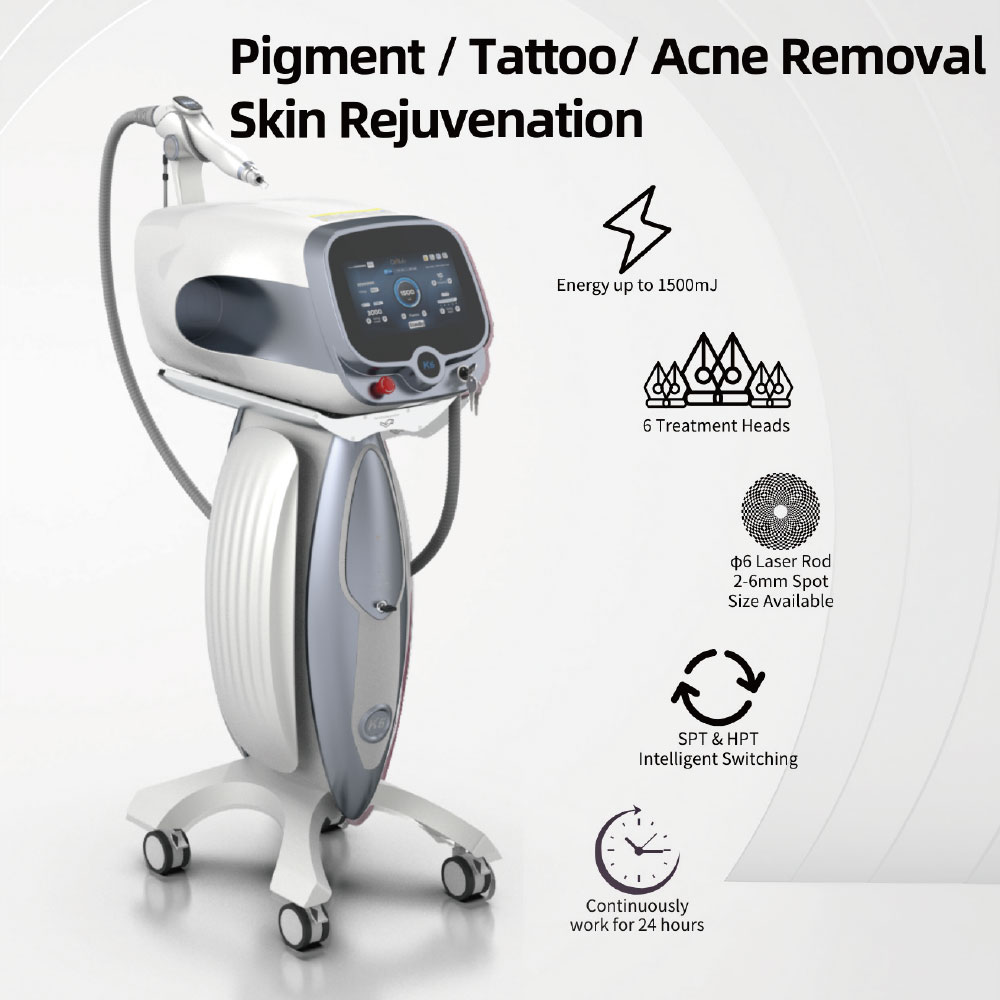

Q-Switched Nd:YAG LIFFAN K6

Pigment /Tattoo /Acne removal/Skin rejuvenation

Always be the guardian of your skin

Technology: Q-Switched ND-YAG
Wavelength: 532 nm / 1064 nm
Spot Size: 2–6 (Continuously Adjustable)
Handpiece: Q-Switched Hand piece + Multipile Teatment Tips

Energy: SPT 532 nm, 200–400 mj

SPT 1064 nm 50 -1000 mj

HPT 1064nm 100-1500 mj

Frequency: 1-10Hz/Auto

Screen: 10.1 inch industrial-capacity Capacity Touch screen

Voltage: AC220V, 50/60Hz

Power: < 800w

Cooling System: PID Water Cooling + Air Cooling

Working Temperature: 10–30 °C

Dimension, G.W.: Machine : 69*47*33cm , 24 kg

Trolley: 64.2 * 51* 97.8cm , 20 kg

6 Treatment Heads, Ø Laser Rod: 2-6mm Spot Size Available,
SPT & HPT Intelligent Switching: Continuous Operation for 24 Hours.

Introduction

Effective Pigment Removal: It can selectively target and break down pigmented lesions, such as age spots, freckles, and sun spots, without damaging the surrounding skin.
Tattoo Removal: This laser is highly effective in removing tattoo ink of various colors, including stubborn shades like black and blue.
Minimal Skin Damage: The laser's high peak power and short pulse duration allow for precise targeting of pigment, minimizing damage to the surrounding tissue and reducing the risk of scarring.
Versatility: It can be used on various skin types and for different cosmetic procedures, including skin rejuvenation and the treatment of vascular lesions.
Quick Treatment Sessions: The efficiency of the Q-switched ND:YAG laser allows for shorter treatment sessions, making it convenient for both patients and practitioners.
Low Downtime: Patients typically experience minimal downtime, allowing them to resume their normal activities shortly after treatment.
Safe and non-invasive: The procedure is non-invasive and safe when performed by a trained professional, reducing the risk of complications.
Long-lasting Results: The laser provides long-lasting results for pigment and tattoo removal, making it a reliable choice for these treatments.

11 Filters

For more Customized & Comprehensive treatment

MULA K2 with its 11 wavelength filters offers a versatile solution for various skin concerns, Each wavelength filter is designed to target specific issues, making MULA K2 a comprehensive tool for skin rejuvenation.

IPL Handpiece

For more Comfortable treatment

The IPL Handpiece boasts an ergonomic design, ensuring comfortable handling and ease of use during treatments. Its user-friendly shape reduces hand fatigue, allowing for precise, steady application, thereby enhancing the comfort and effectiveness of each therapy session.

2 Precise Treatment Heads

For more Precise treatment

⦁ ∅8 for targeted, delicate areas, ensuring accuracy in small zones.
⦁ 38x10 Fractional Head for broader areas, enabling efficient, uniform coverage.

These versatile heads cater to various skin concerns, ensuring effective, customized treatments.

Smart Trolley

For more Convenient treatment

The Smart Trolley for MULA K2 offers organized storage for treatment accessories like filters and precise heads, and enhances its mobility and stability, adding aesthetic appeal to professional settings and facilitating efficient, comfortable treatments.

professional laser hair removal machines

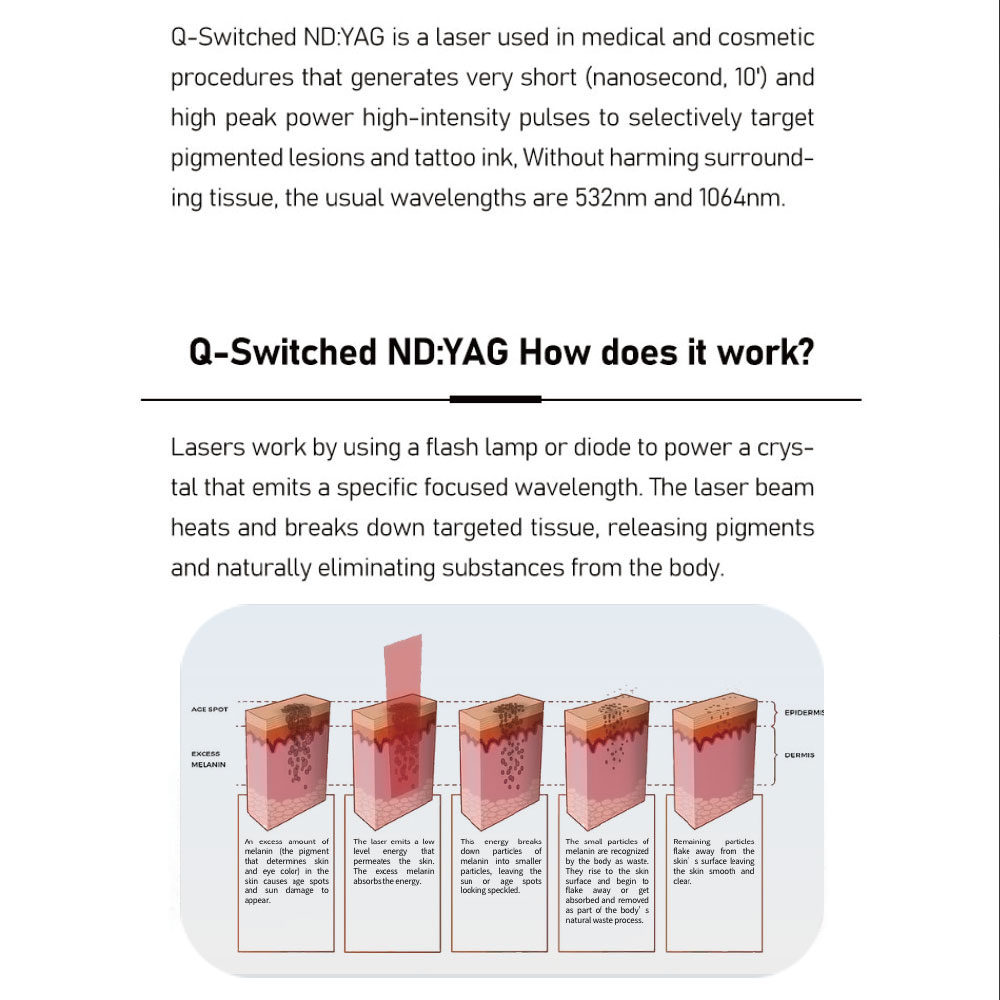

WHAT IS Q-SWITCHED ND:YAG?

Q-Switched ND: YAG is a laser used in medical and cosmetic procedures that generates very short (nanosecond, 10 ns) and high peak power, high-intensity pulses to selectively target pigmented lesions and tattoo ink without harming surrounding tissue. The usual wavelengths are 532 nm and 1064 nm.

HOW IT WORKS?

Lasers work by using a flash lamp or diode to power a crystal that emits a specific, focused wavelength. The laser beam heats and breaks down targeted tissue, releasing pigments and naturally eliminating substances from the body.

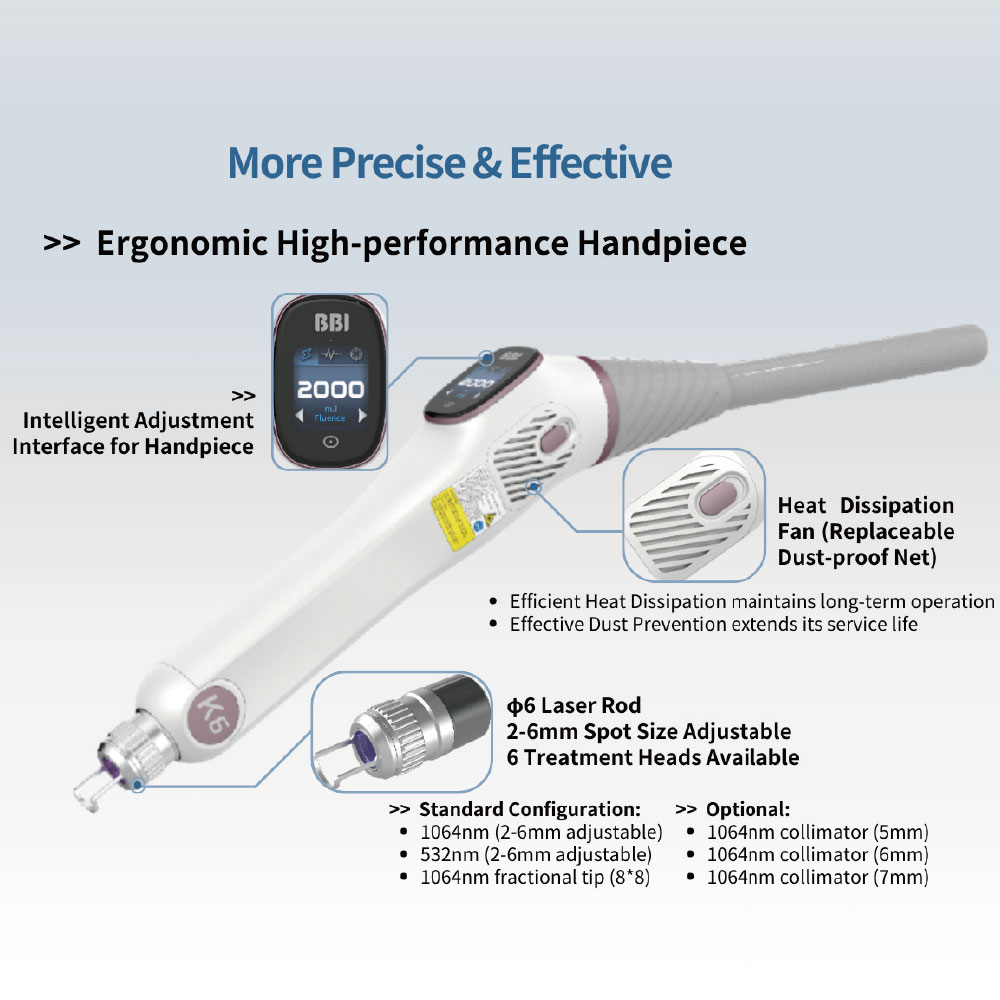

More Precise & Effective

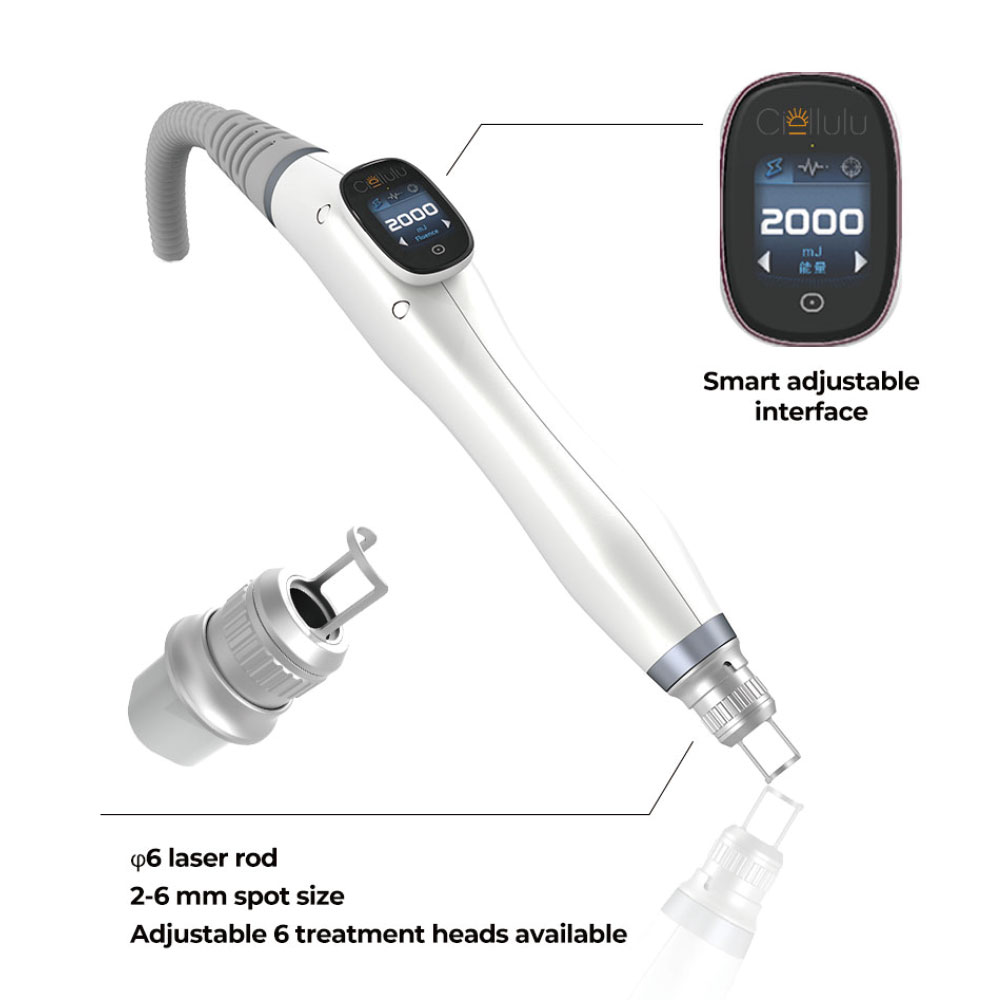

Ergonomic, High-performance Handpiece

Intelligent Adjustment Interface for Handpiece
Heat Dissipation Fan (Replaceable Dust-proof Net)
1. Efficient Heat Dissipation maintains long-time operation
2. Effective Dust Prevention extends its service life

φ6 Laser Rod
2–6 mm Spot Size: Adjustable
6 Treatment Heads are available.

Standard Configuration:

1064 nm (2–6 mm adjustable)
532 nm (2–6 mm adjustable)
1064 nm fractional tip (8*8 mm)
Optional:
1064 nm collimator (5 mm)
1064 nm collimator (6 mm)
1064 nm collimator (7 mm)

More Intelligent & Easy to Operate

Greatly improving the controllability of clinical practice:

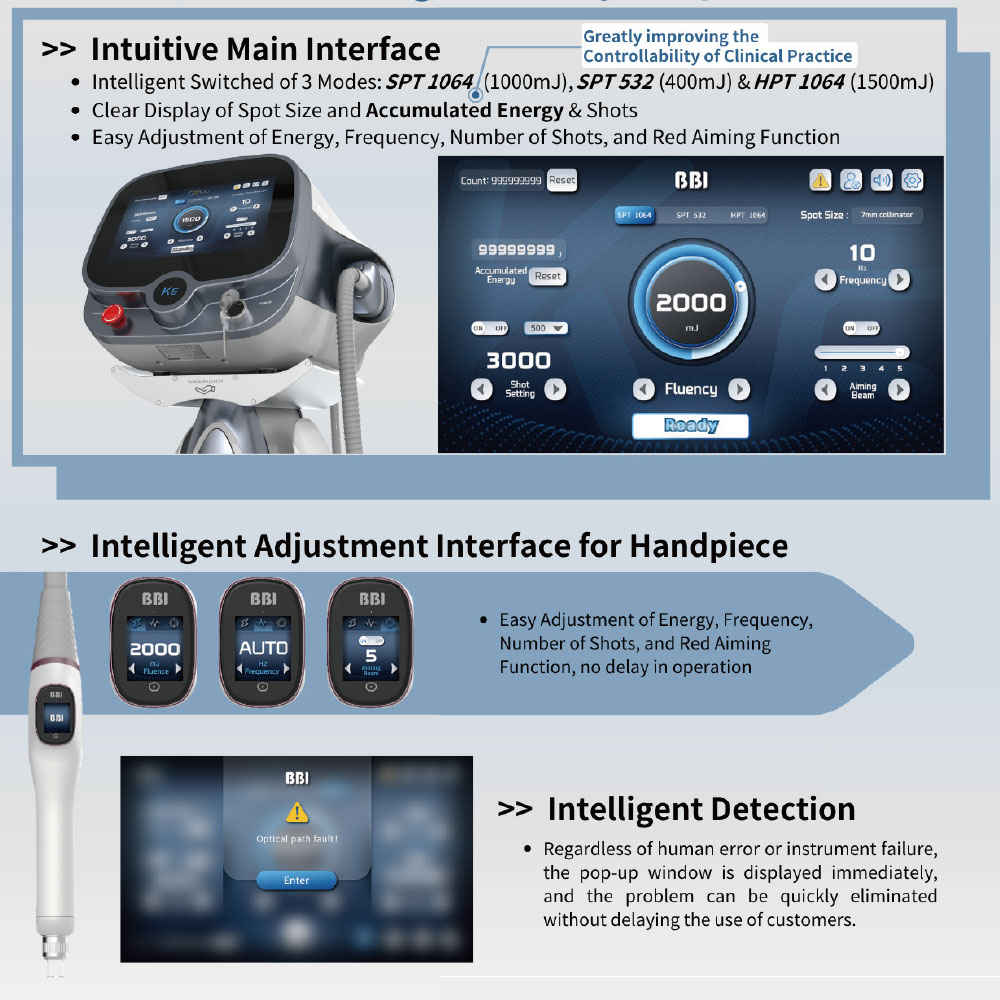

Intuitive Main Interface
1. Intelligent switching between 3 modes: SPT1064 (1000mJ), SPT532 (400mJ), and HPT1064 (1500mJ)
2. Clear display of spot size, accumulated energy, and shots
3. Easy adjustment of energy, frequency, number of shots, and red aiming function

Intelligent Adjustment Interface for Handpiece

Easy adjustment of energy, frequency, number of shots, and red aiming function. There was no delay in operation.

Intelligent Detection

Regardless of human error or instrument failure, the pop-up window is displayed immediately, allowing the problem to be quickly eliminated without delaying use for customers.

Energy Loss Display

Ultra-low Energy loss

Energy loss is as low as 5% during 200,000 test shots.

K6-A1

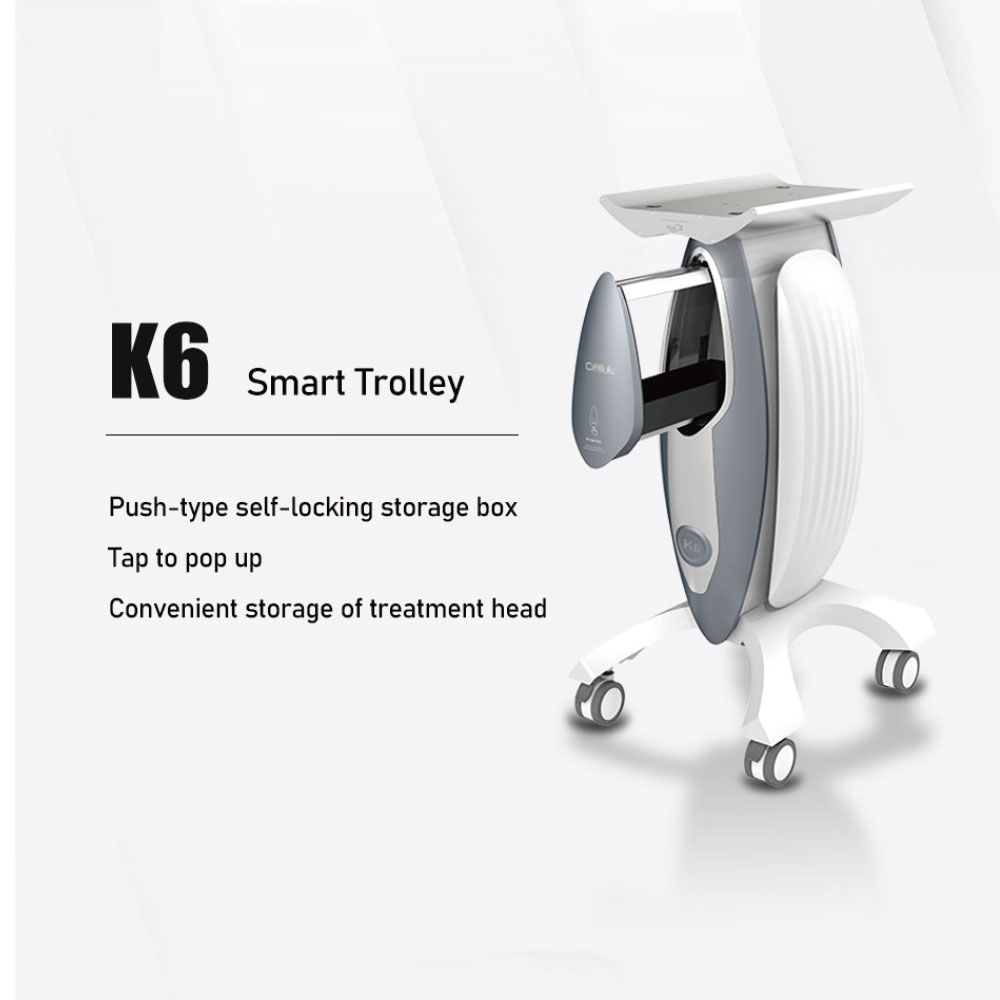

Smart Trolley

Press self-locking storage box

Press to eject llghtty
Convenient storage the treatment heads

Specification

Technology: Q-Switched ND:YAG
Wavelength: 532 nm / 1064 nm
Spot Size：Ø2-6 (Continuously Adjustable)
Handpiece: Q-Switched Hand pieces + Multipile Teatment Tips

Energy: SPT 532 nm, 200–400 mj

SPT 1064 nm 50 -1000mj

HPT 1064nm 100-1500mj

Frequency: 1-10Hz/Auto

Screen: 10.1-inch industrial Capacities Touche screen

Voltage: AC220V, 50/60Hz

Power: < 800w

Cooling System: PID Water Cooling + Air Cooling

Working Temperature: 10–30 °C

Dimension, G.W.: Machine : 69*47*33cm , 24kg

Trolley: 64.2 * 51* 97.8cm , 20 kg

Applicators

420nm

Acne facial treatment, anti inflammatory for skin

500nm

Vascular diseases such as facial telangiectasia treatment, erythema after acne, facial flushing and nevus flammeus

515nm

Ipl laser for rosacea, epidermal pigmentation

550nm

Freckle removal treatment, Aestates, senile spots and the other pigmentation

560nm

Epidermal vessel, epidermal pigmentation

590nm

Whitening skin treatment, Antiphlogosis, Anti-Redness, dermal pigmentation, Anti-Dullness

615nm

Skin care rejuvenation, improve skin quality, smooth fine lines

640nm

Photo rejuvenation therapy, anti wrinkles treatment, shrinking pores

695nm

Ipl hair removal

ACNE

Severe acne treatment, Sebaceous Gland

VASCULAR

Severe deep and superficial vascular lesions

Treatment principle

What is IPL?

Intense Pulsed Light (IPL) is a technology used in various skin treatments, including hair removal, photorejuvenation, and treating vascular and dermatologic diseases. IPL emits a broad spectrum of light that targets specific structures and chromophores in the skin, mainly melanin in hair or hemoglobin in blood vessels, causing thermal and/or mechanical damage to them without damaging the surrounding tissue.

What is IPL?

Standard Filters	LPI	Treatment
	420nm (420-950nm)	Inflammation, Acne
	515nm (515-950nm)	Superficial Pigment, Acne Rosacea
	560nm (560-950nm)	Superficial Vessels, Superficial Pigment
	590nm (590-950nm)	Pigmentation, Anti-dullness, Whitening, Anti-phlogosis, Anti-Redness
	615nm (615-950nm)	Skin Rejuvenation, Fade Fine Lines, Improve Skin Quality
	640nm (640-950nm)	Wrinkles, Shrinking Pores, Oil-controled, Anti-inflammatory, Acne Tuberata
	695nm (695-950nm)	Skin Fine Lines, Shrinking Pores, Hair Removal
Optional Filters	DPI	Treatment
	500nm (500-600nm)	Vascular Diseases such as telangiectasia, erythema after acne, facial flushing, nevus flammeus
	550nm (550-650nm)	Freckles, Sunburn spots, senile spots and other pigmented diseases
	ACNE (400-600 & 800-1200nm)	Sebaceous Gland, Severe Acne
	VASCULAR (530-650 & 900-1200nm)	Severe Deep and Superficial Vascular Lesions

Acne Removal Treatment

Endogenous porphyrins in Acne absorb the energy of pulsed light to produce photochemical reactions that release singlet oxygen to effectively kill propionibacterium in acne.

◉ Propionibacterium Acnes (PAC) produces endogenous porphyrins during its normal metabolism.

◉ The energy of specific bands is absorbed by porphyrin through the skin, and porphyrin is stimulated to release singlet oxygen ion

◉ Singlet oxygen ion can effectively kill propionibacterium acnes

Superficial Blood Vessel Removal Treatment

The hemoglobin absorbs the energy of pulsed light selectively will lead to blood warming, thrombosis and close dilated blood vessels. The blood can not pass through the diseased blood vessels, so that it lacks nutrition and becomes atrophy, thus,eventually metabolized by the human body, so as to achieve the purpose of treating telangiectasia. But the normal blood vessels have less hemoglobin to absorb less energy so they are not affected.

Freckle Removal Treatment

It adopts the“Selectively Thermal Absorption of Laser” principle. When the specific wavelength of light acting on the skin will be absorbed selectively by the melanin of diseased tissue (the content of melanin in diseased tissue is much more than that of normal tissue.). Some of melanin in the deep layer will be cracked for fine particles, and the particles will be swallowed by the phagocyte and expelled from body with lymphatic system. Some of melanin in the superficial tissue will be popped out of epidermis,and then, the color of epidermis pigment will be deeper. The melanin will drop with the skin cuticle metabolism. Thus, the freckle will be faded away. However, the normal skin absorbs less energy, and there is the strong epidermis cooling technology to protect it.Therefore, the normal skin won’ t be hurt, at the same time, the skin complexion will be improved.

Wrinkles Removal and Skin Rejuvenation Treatment

With ultra narrow spectrum, it produces thermal effect and photochemical effect.Thermal effect makes some aging and naive collagen in dermis caused thermal coagulation, thus the activity of the fibroblasts promote a large number of new hypodermic collagen regenerated. Photochemical effect makes deep collagenous fiber and elastic fiber rearranged and restored skin elasticity, besides, strength-ens the function of vascular tissue, enhances skin metabolism to make skin moist delicate and elastic.

Hair Removal Treatment

After the melanin in the hair stem absorbs the light energy selectively, the light energy will be converted into thermal energy, which is transmitted to the isthmus and follicle (dermal papilla, hair growth point) of hair follicle through the hair stem to damage the blood vessels in the dermal papilla and cause them heat and atrophy. So as to achieve the effect of hair removal.

Before & After

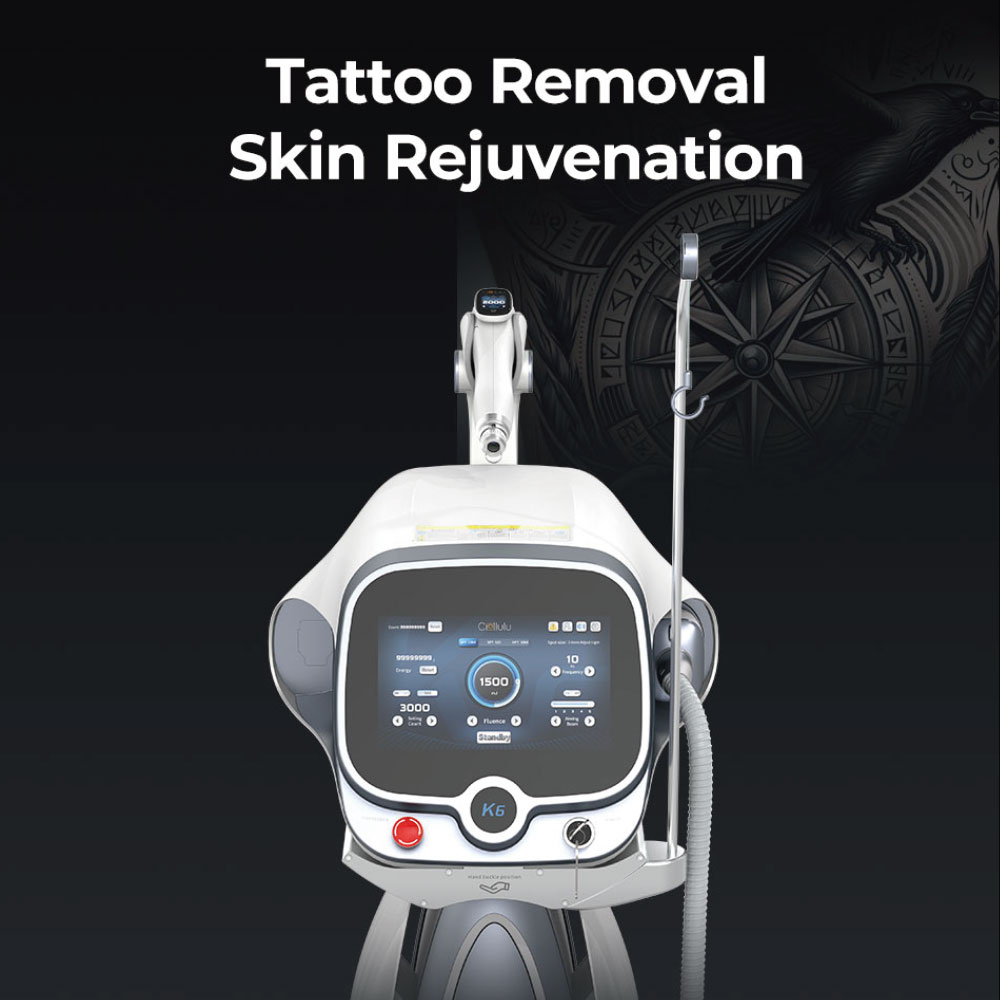

Q-Switched ND:YAG Laser Beauty Machine

The Q-switched ND:YAG laser effectively removes pigmented lesions and tattoo ink with minimal skin damage and low risk of scarring. It is versatile, suitable for various skin types and cosmetic procedures, and offers quick treatment sessions with minimal downtime. This non-invasive laser provides long-lasting results, making it a reliable choice for pigment and tattoo removal.

Before

After

Photo rejuvenation therapy

Before

After

Acne facial treatment

Before

After

Vascular diseases

Before

After

Freckle removal treatment

Before

After

Photo rejuvenation therapy

Before

After

Acne facial treatment

Before

After

Vascular diseases

Before

After

Freckle removal treatment

Before

After

Ipl hair removal

Product parameters

Transaction parameters

Brand	CIELLULU
Made	China
Minimum order quantity	A (machine)
Model	Mula K2-A1
Dimension/G.W	Machine: 810540675mm,28KG Trolley: 6455151000mm, 20KG (Optional)

Property parameters

Filters	420nm(420-950nm), 515nm(515-950nm), 560nm(560-950nm), 590nm(590-950nm), 615nm(615-950nm), 640nm(640-950nm), 695nm(695-950nm), 500nm(500-600nm), 550nm(550-650nm), ACNE (400–600 & 800–1200 nm), VASCULAR (530–650 & 900–1200 nm)
Spot Size	14*38mm	Pulse Interval	1-99ms
Handpiece	IPL and DPL Handpiece	Screen	10.1 Inch Industrial Capacitive Touch Screen
Fluence	2-50J/cm2	Voltage	AC220V 50Hz
Frequency	1-30Hz	Power	<2300W
Pulse Width	1-30ms	Cooling System	TEC Electronics Cooling Water Cooling, and Air Cooling
Pulse Number	1---3	Temperature	15-30C
